Product Drawings
| Item | Size | GP-630ST | |||||||||||||||||||||||||||
| Working range | Max.Turning diameter over bed | φ780 | |||||||||||||||||||||||||||
| Max.Turing diameter | φ300(When the X-axis and the special hydraulic turret are protected as a whole) | ||||||||||||||||||||||||||||
| Max.Turning swing dia.over carriage | φ450 | φ450 | |||||||||||||||||||||||||||
| Max.Length between both chucks | 850 | 666 | |||||||||||||||||||||||||||
| Max.Processing length | 850 | 650 | |||||||||||||||||||||||||||
| Max.X/Z axis travel | X1/X2 axis | 290/290 | |||||||||||||||||||||||||||
| Y1/Y2 axis | |||||||||||||||||||||||||||||
| Z1/Z2 axis | 1000/580 | ||||||||||||||||||||||||||||
| Max.Tallstock travel | 1000 | ||||||||||||||||||||||||||||
| Feed screw | Control axis | 7 Axis (X1+X2+Z1+Z2+Z3+C1+C2 | |||||||||||||||||||||||||||
| X1/X2axis ball-screw | 4010-C3 | ||||||||||||||||||||||||||||
| (N·m)Recommend the X axis motor torque | >15 | ||||||||||||||||||||||||||||
| Y1/Y2 axis ball-screw | |||||||||||||||||||||||||||||
| (N·m)Recommend the Z axis motor torque | / | ||||||||||||||||||||||||||||
| Z axis ball-screw | 4010-C3 | ||||||||||||||||||||||||||||
| (N·m)Recommend the Zaxis motor torque | >15 | ||||||||||||||||||||||||||||
| Tailstock ball-screw | 4010-C3 | ||||||||||||||||||||||||||||
| (N·m)Recommend tailstock motor torque | >15 | ||||||||||||||||||||||||||||
| Bed | Bed slant angle | 45° integral casting bed | |||||||||||||||||||||||||||
| Linear quide's span | 427 | ||||||||||||||||||||||||||||
| Spindle | (rpm)Max.Spindle speed | main spindle:4500 back spindle:4500 | main spindle:3000 back spindle:3000 | ||||||||||||||||||||||||||
| Spindle through-hole diameter | main spindle:φ62 back spindle:φ62 | main spindle:φ88 back spindle:φ88 | |||||||||||||||||||||||||||
| Spindle nose size | main spindle:A2-6 back spindle:A2-6 | main spindle:A2-8 back spindle:A2-8 | |||||||||||||||||||||||||||
| Bore taper | main spindle:1:20 back spindle:1:20 | main spindle:1:20 back spindle:1:20 | |||||||||||||||||||||||||||
| (kW)Recommend the spindle motor power | main spindle:7.5 back spindle:7.5 | main spindle:11 back spindle:11 | |||||||||||||||||||||||||||
| Hydraulic chuck or collet chuck | main spindle:8 inch back spindle:8 inch | main spindle:10 INCH back spindle:10 INCH | |||||||||||||||||||||||||||
Related Products
-gp-500strym.jpg "45° Turning and Grinding Centre (Double Spindle Single Turret Double Y-axis Single Grinding Head) GP-500STRYM")
45° Turning and Grinding Centre (Double Spindle Single Turret Double Y-axis Single Grinding Head) GP-500STRYM
30°Linear-rail Turning and Carving Compound Optical Machine FC-51YD
-gp-360-dp-400.jpg "45°Integrated Slant-bed CNC Lathe(Linear Rail, Turret-mounted) GP-360 DP-400")
45°Integrated Slant-bed CNC Lathe(Linear Rail, Turret-mounted) GP-360 DP-400
-gp-400s.jpg "45°Turning Centre(Double Spindle Single Turret) GP-400S")
45°Turning Centre(Double Spindle Single Turret) GP-400S
Copyright © Jiangsu IVY Foundation Intelligent Technology Co., Ltd. All Rights Reserved Sitemap
| Technical Support:

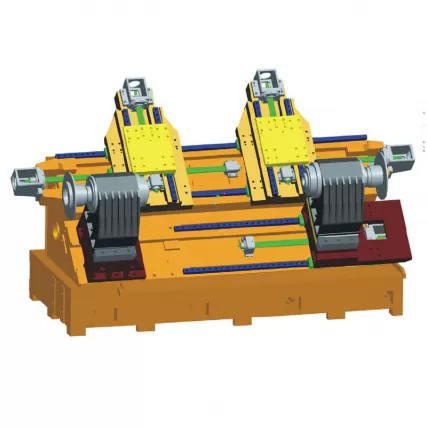

.jpg "45°Turning Centre(Double Spindle and Double Turret GP-630ST)")
