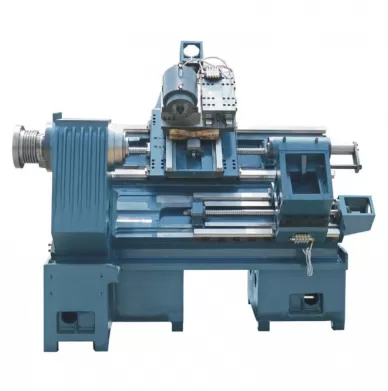

45°Integrated Slant-bed CNC Lathe(Linear Rail, Turret-mounted) GP-360 DP-400

Product Drawings

 I t emS i z eGP-360GP-400
Working rangeMax.Turning diameter over bedφ420φ450
Max.Turning swing dia.over carriageφ160φ220
Max.Turing diameterφ360φ400
Max.Processing length500450400
Max.X/Z axis traveXaxis250
Zax is530
Feed screwXaxis ball-screw3208-C3
(N·m)Recommend the X axis motor torque>10
Z axis ball-screw3208-C3
(N·m)Recommend the Zaxis motor torque>10
BedBed slant angle45° integral casting bed
Linear quide's spar400
SpindlerpmMax.spindle speed450045003000
Spindle through-hole diameterφ56Standard configurationφ62Standard configurationφ79Optional
Spindle nose sizeA2-5A2-6A2-6
(kW)Recommend the spindle motor power5.57.57.5
Hydraulic chuck or collet chuck6inch or 46Simple clip8inch or 52Simple clip10inch
Hydraulic TailstockDiameter of Tallstock center sleeveφ72
Max.stroke of Tallstock center sleeve100
Taper of Tailstock center sleeveMT4
