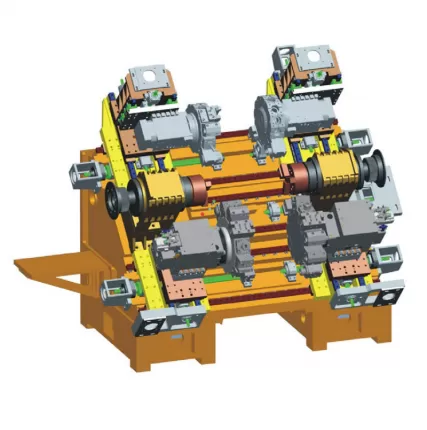

45°Turning Centre(Double Spindle Four Turret Double Y-axis) GP-500STTYY-Supplier

Product Drawings

I t em

Size

GP-500STTYY

Working range

Max.Turning diameter over bed

b680

Max.Turning swing dia.over carriage

φ380

Max.Turing diameter

φ250(When the X and Y axes and the power turret are protected as a whole)

Max.Length between both chucks

560

580

Max.Processing length

300

Max.X/Z aos ra

X1/X2/X3/X4 axis

230/230/160/160

Y1/Y2 axis

120/120

Z1/Z2/Z3/Z4 axis

570/350/570/350

Max.Tailstock travel

570

Feed screw

Controlaxis

13Axis(X1+X2+X3+X4+Y1+Y2+Z1+Z2+Z3+Z4+Z5+C1+C2

X1/X2/X3/X4 axis ball-screw

3210-C3

(N·m)
Recommend the X1/X2/X3/X4 axis motor torque

>10

Y1/Y2 axis ball-screw

3208-C3

(N·m)Recommend the Y1/Y2 axis motor torque

>10

Z1/Z2/Z3/Z4 axis ball-screw

4010-C3

(N·m)
Rec mend the Z1/Z2/Z3/Z4axis motor torque

≥15

Z5 axis ball-screw

4010-C3

(N·m)Recommend the Z5 axis motortorque

Bed slant angle

45° Integral cast bed

Linear guide's span

400

Spindle

(rpm) Max.spindle speed

main spindle:4500 back spindle:4500

Spindle through-hole diameter

main spindle:φ61 back spindle:φ61

main spindle:φ61 back spindle:φ56

Spindle nose size

main spindle:A2-6 back spindle:A2-6

main spindle:A2-6 back spindle:A2-5

(kW)Recommend the spindle motor power

main spindle:7.5 back spindle:7.5

main spindle:7.5 back spindle:5.5

Hydraulic chuck or collet chuck

main spindle:8 inch back spindle:8 inch

main spindle:8 inch back spindle:6 inch
