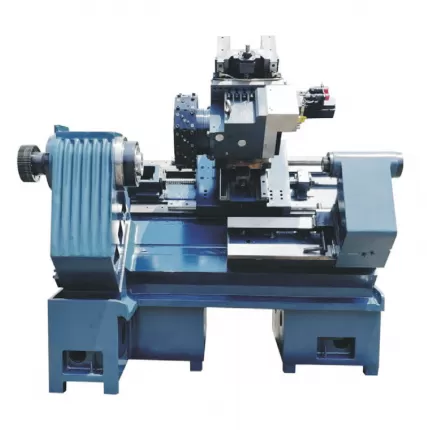

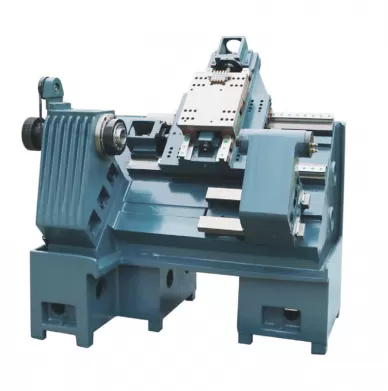

45°single spindle single turret single Y-axis turning centre light machine(line rail)GP-40YC

Product Drawings

ItemS i z eGP-40YC
Working rangeMax.Turning diameter over bedφ580
Max.Turning swing dia over cariageφ300
Max.Turing diameterφ260
Max.Turing diameterφ350
Max.Processing length350
Max.X/Z axis traveXaxis300
Y axis±50
Zax is530
R axis400(Optional)
Feed screwX axis ball-screw3208-C3
(N·m)Recommend the X axis motor torque>15
Y axis ball-screw3208-C3
Recommend the Y axis motortorque>10
Z axis ball-screw3208-C3
Recommend the Zaxis motor torque>15

Bed slant angle45° integral casting bed
Linear guide's span400
Spindle Max.spindle speed4500
Spindle through-hole diameterφ62
Spindle through-hole diameterφ50
Spindle nose sizeA2-6
Bore taperMT6
Recommend the spindle motor power7.5
Hydraulic chuck or collet chuck8 inch
Hydraulic TailstocDiameter of Tallstock center sleeveφ72
Max.stroke of Tallstock center sleeve100
Taper of Tailstock center sleeveMT4
