30°Linear-rail Turning and Carving Compound Optical Machine FC-51YD

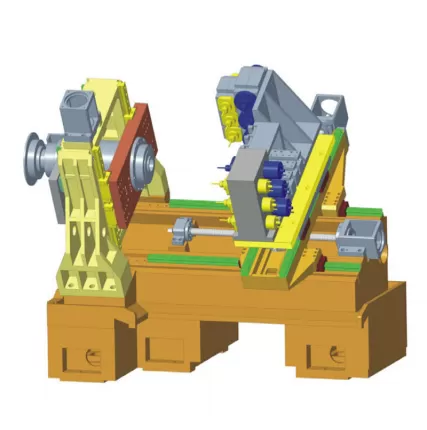

Product Drawings

 I t emSizeFC-51YD
Working rangeMax.Turning diameter over bedφ630
Max.Turning swing dia over cariageφ360
Max.Turing diameterφ510
Max milling legth330300
Max.Processing lengthGank:480 Gank:450
Turret:380urret:350
Max.X/Z axis treXaxis1060
Yaxis300
Z axis530
Feed screwXaxis ball-screw3210-C3
(N·m)Recommend the X axis motor torque>10
Yaxis ball-screw3210-C3
(N·m)Recommend the Y axis motor torque>10
Z axis ball-screw3210-C3
(N·m)Recommend the Zaxis motor torque>10

Bed
Bed slant angle30° integral casting bed
Linear guide's span450
PMSM ELECTRO SPINDLE(rpm) Max.spindle speed50004000
Spindle through-hole diameterφ56φ66
Spindle nose sizeA2-5A2-6
Taper of holeMT61:20
(KW)Rated power1115
hydraulic chuck or collet chuck6inch or 46 Simple clip8inch or 52 Simple clip
