45°Turning Centre(Single Spindle Double Row Tool SlitterPiston Slitter) GP-500SP-Supplier

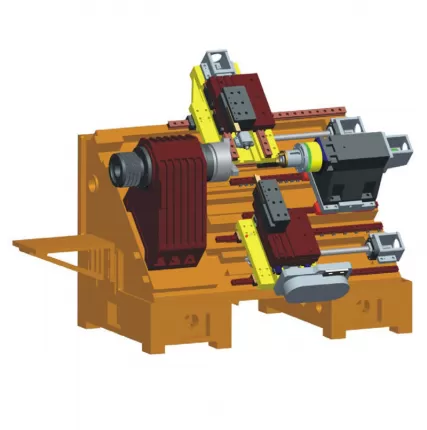

Product Drawings

Item

Size

GP-500SP

Working range

Max.Turning diameter over bed

φ680

Max.Turning swing dia.over carriage

φ250

Max.Turing diameter

φ500

Max.Processing length

350

Max.X/Z axis tra

X2/X4 axis

230/160

Z2/Z4 axis

570/570

R-axis (servo inner sleeve)

100

Z5 axis (cylinder driven spindle)

350

Feed screw

Control axis

7Axis(X2+X4+Z2+Z4+Z5+C1+C2)

X2/X4 axis ball-screw

3210-C3

(N·m)
Recommend theX2/X4 axis motor torque

>10

Z2/Z4axis ball-screw

4010-C3

(N·m)
Recommend theZ2/Z4 axis motor torque

>15

ball-screw

3210-C3

(N·m)
Recommend the R axis motor torque

>15

Bed

Bed slant angle

45° Integral cast bed

Linear guide's span

400

spindle

(rpm)Max.spindle speed

3000

Spindle through-hole diameter

φ88standard equipment

Spindle nose size

A2-8

(KW)Recommend the spindle motor power

Hydraulic chuck or collet chuck

10inch

Hydraulic Tailstock

Diameter of Tallstock center sleeve

φ100

Max.stroke of Tallstock center sleeve

100

Taper of Tailstock center sleeve

MT4
