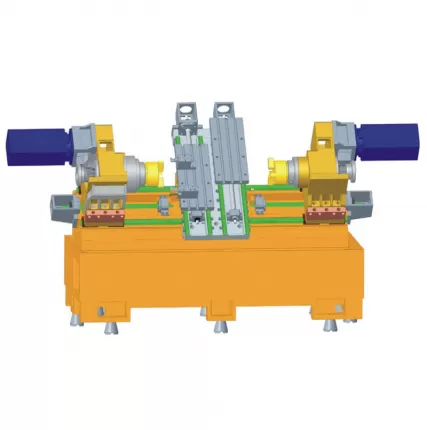

45° double mechanical spindle double turning and milling compound light machine (line rail))GP-36PPSS

Product Drawings

ItemSIzeGP-36PPSS
Working rangeMax.Turning diameter over bedφ500
Max.Turning swing dia.over carriageφ190
Max.Turing diameterφ360(disk type)
Max.length between both chucks750
Max.Processing length200(unidirectional)
Max.X/Z axis traveX1/X2 axis1060/1060
Z1/Z2 axis400/400
Feed screwControl axis6Axis(Xu+X2+Z¹+Z2+C1+C2
X1/X2axis ball-screw3210-C3
(N·m)Recommend theX1/X2axis motor torque>7.5
Z1/Z2 axis ball-screw3210-C3
(N·m)Recommend the Z1/Z2axis motor torque>15
B e dBed slant angle45° integral casting bed
PMSM
   electro
   spindle
Max.spindle speedmain 5000,back500
Spindle through-hole diametermain:φ56,back:φ56
Spindle nose sizemain:A2-5,back:A2-5
(kW)Rated powermain:11.back¹1
Hydraulic chuck or collet chuckmain:G inch,back 6 inch
