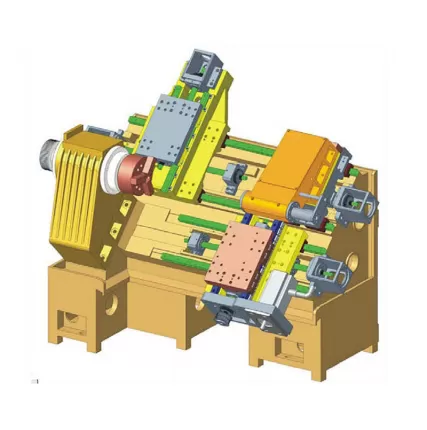

45°Slender shaft type upper and lower turret composite turning centre GP-40TC-Supplier

Product Drawings

ltem

Size

GP-40TC

Working range

Max.Turning diameter over bed

φ450

Max.Turning swing dia.over carriage

φ220

Max.Turing diamete

φ400

Max.Processing length

400

MAYX/7 AXiS TA

X1 axis

250

Z1 axis

530

X2 axis

250

Z2 axis

530

R axis

250

Feed screw

X1 axis ball-screw

3208-C3

Recommend the X1 axis motor torque

>10

X2 axis ball-screw

3208-C3

Recommend theX2 axis motor torque

>10

Z1 axis ball-screw

3208-C3

Recommend the Z1 axis motor torque

≥10

Z2 axis ball-screw

3208-C3

Recommend the Z2 axis motor torque

≥10

R axis ball-screw

3208-C3

Recommend the R axis motor torque

>10

Bed

Bed slant angle

45° integral casting bed

Linear guide's span

400

Spindle

Max.spindle speed

4500

Spindle through-hole diameter

φ62

Spindle nose size

A2-6

Bore taper

1:20

Recommend the spindle motor power

7.5

hydraulic chuck or collet chuck

8inch orφ52 collet chuc

Hydraulic Tailstock

Diameter of Tailstock center sleeve

φ72

Max.stroke of Tallstock center sleeve

100

Taper of Tailstock center sleeve

MT4
