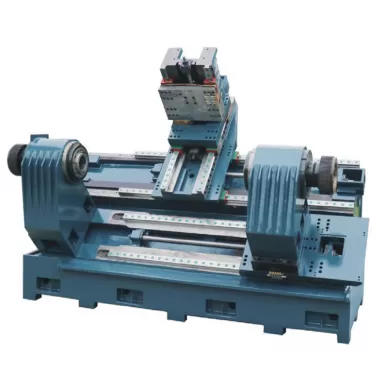

Line-rail Turning, milling and grinding combined machine 30° FC-51Y

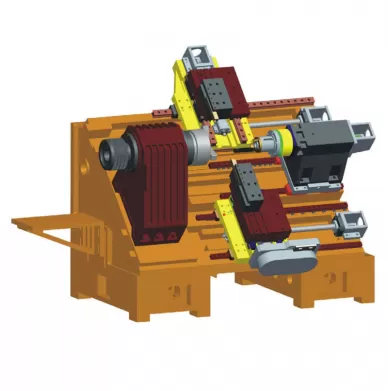

Product Drawings

ItemSizeFC-51Y
Working range   Max.Turning diameter over bedφ510
   Max.Turning swing dia over carriageφ180
   Max.Turing diameterφ400
   Max.milling legth330300270
   Max.Processing lengthGank:480Gank:450Gank :420
Turret.380Turret.350Turet.320
Max.X/Z axis travel   Xaxis1100
   Zax is550
Feed screw   X axis ball-screw3210-C3
   (N·m)Recommend the X axis motor torque>10
   Z axis ball-screw3210-C3
   (N·m)Recommend the Z axis motor torque>10
bed   Bed slant angle30° integral casting bed
   Linear guide's span450
Spindle   (pm)  Max.spindle speed4500 4500  3000
   Spindle through-hole diameterφ56φ62  φ79
   Spindle nose sizeA2-5 A2-6  A2-6
   Taper of holeMT6 MT6  MT6
   (kW)Recommend the spindle motor power5.5 7.5  7.5
   hydraulic chuck or collet chuck6inch or 46Simple clip8inch or 52Simple clip 10inch
