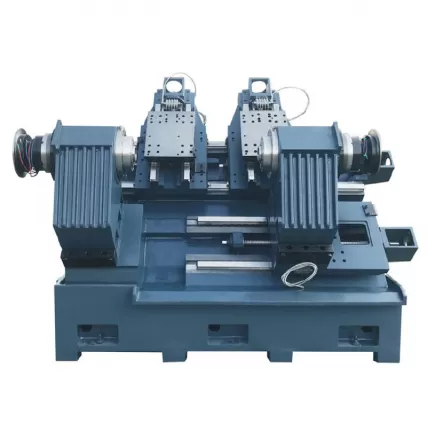

45°Turning Centre(Double Spindle and Turret) GP-400ST

Product Drawings

l t e mS i z eGP-400ST
Working range  Max.Turning diameter over bedφ580
  Max.Turning swing dia.over carriageφ350
  Max.Turing diameterφ250(When the X-axis is protected with a special hydraulic turret.)
  Max.Length between both chucks480   500
  Max.Processing length350   350
Max.X/Z axis trav  X1/X2 axis230/230
  Z1/Z2 axis400/530
  Max.Tailstock travel530
Feed screw  Control axis 7Axis(X1+X2+Z1+Z2+Z3+C1+C2)
  ×1/X2 axis ball-screw3208-C3
  (N·m)Recommend theX1/X2axis molortorque>10
  Z axis ball-screw3208-C3
  (N·m)Recommend the Zaxis motor torque>15
  Tailstock ball-screw3208-C3
  (N·m)Recommend talstock motor torque>15
BED  Bed slant angle45° Integral cast bed
  Linear guide's span400
Spindle  (rpm)Max.spindle speedmain spindle:4500              back spindle:4500main spindle:4500              back spindle:4500
  Spindle through-hole diametermain spindle:φ61        back spindle:φ56main spindle:φ56         back spindle:φ56
  Spindle nose sizemain spindle:A2-6          back spindle:A2-5main spindle:A2-5          back spindle:A2-5
  (KW)Recommend the spindle motor powermain spindle:7.5      back spindle:5.5  main spindle:5.5       back spindle:5.5
  draulic chuck or collet chuckmain spindle:8 inch          back spindle:6 inchmain spindle:6 inch          back spindle:6 inch
