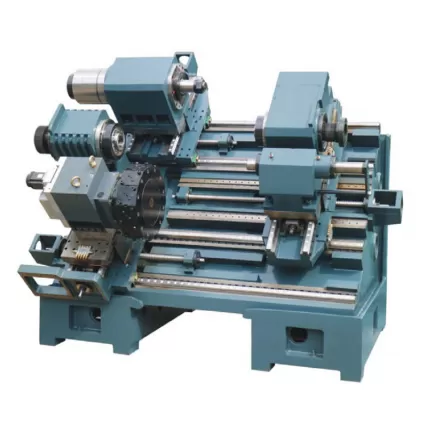

45°Turning & Grinding Centre(Double Spindle Single Turret Single Head) GP-500STRM-Supplier

Product Drawings

Item

S i z e

GP-500STRM

Working range

Max.Turning diameter over bed

φ680

Max.Turning swing dia.over carriage

φ400

Max.Turing diameter

φ250(When the X-axis and headstock are protected as a whole)

Max.length between chuck and tailstock center

679

Max.Length between both Chucks

665

Max.Turning &Grinding length

500

Max.X/Z axis trav

X1/X3/X5 axis

230/160/350

Z1/Z3 axis

680/680

Max.Taiistock travel

680

Feed screw

Controlaxis

9Axis(X1+X3+X5+Z1+Z3+Z5+C1+C2+C3)

X1/X3axis ball-screw

3210-C3

(N·m)Recommend theX1/X3axis motor torque

>10

X5 axis ball-screw

4010-C3

(N·m)Recommend theX5 axis motor torque

>15

Tailstock ball-screw

3208-C3

(N·m)Recommend theY1/Y3axis motor torque

>10

Tailstock ball-screw

4010-C3

(N·m)Recommend talstock motor torque

>15

BED

Bed slant angle

45° Integral cast bed

Linear guide's span

400

Spindle

(rpm)Max.spindle speed

main 4500,back4500

Spindle through-hole diameter

main:φ61,back:φ56

Spindle nose size

main:A2-6,back:A2-5

(kW)Recommend the spindle motor power

main:7.5,back:5.5

Hydraulic chuck or collet chuck

main:8 inch,back:6 inch

Hydraulic Tailstock

Diameter of Tallstock center sleeve

φ60

Max.stroke of Tailstock center sleeve

200

Taper of Tailstock center sleeve

MT4
