45°Turning Centre(Double Spindle Single Turret) GP-400S-Supplier

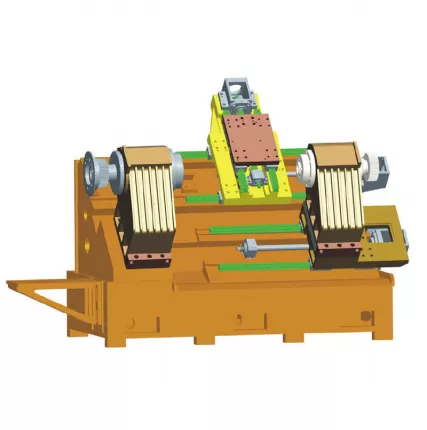

Product Drawings

l t em

Size

GP-400S

Working rang

Max.Turning diameter over bed

φ580

Max.Turning swing dia over cariage

φ350

Max.Turing diameter

φ250(When the X-axis is protected with a special hydraulic turret.)

Max.Length between both chucks

480

500

Max.Processing lengtt

450

480

Max XZ axis ta

X2 axis

230

Z2 axis

530

Max.Tallstock travel

530

Feed screw

Control axis

5Axis(X2+Z2+Z3+C1+C2

X2 axis ball-screw

3208-C3

(N·m)Recommend the X2 axis motor torque

>10

Z2 axis ball-screw

3208-C3

(N·m)Recommend the Z2 axis motor torque

>15

Tailstock ball-screw

3208-C3

(N·m)Recommend talstock motor torque

>15

Bed

Bed slant angle

45° Integral cast bed

Linear guide's span

400

Spindle

(tpm)Max.spindle speed

main spindle:4500 back spindle:4500

Spindle through-hole diameter

main spindle:φ61 back spindle:φ56

main spindle:φ56 back spindle:φ56

Spindle nose size

main spindle:A2-5 back spindle:A2-5

(kW)Recommend the spindle motor power

main spindle:7.5 back spindle:5.5

main spindle:5.5 back spindle:5.5

Hydraulic chuck or collet chuck

main spindle:8 inch back spindle:6 inch

main spindle:6 inch back spindle:6 inch
