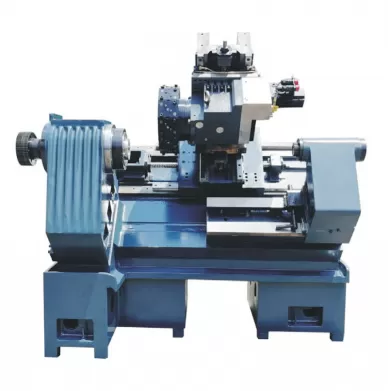

45°Integrated Slant-bed CNC Lathe(Linear Rail, Turret-mounted) GP-500-Supplier

Product Drawings

I t e m

Size

GP-500

Working range

Max.Turning diameter over bed

φ550

Max.Tuning swing dia over cariage

φ250

Max.Turing diameter

φ500

Max.Processing length

750

Max.X/Z axis travel

X axis

280

Zax is

850

Max.Tailstock travel

750

Feed screw

Xaxis ball-screw

3210-C3

(N·m)Recommend the X axis motor torque

≥10

Z axis ball-screw

4010-C3

(N·m)Recommend the Z axis motor torque

Bed

Bed slant angle

45° integral casting bed

Linear guide's span

400

Spindle

(rpm) Max spindle speed

4500

3000

Spindle through-hole diameter

62Standard configuration

φ79Optional

Spindle nose size

A2-6

Bore taper

1:20

(KW)Recommend the spindle motor power

7.5

hydraulic chuck or collet chuck

8inch

10inch

Hydraulic Tailstoc

Diameter of Tailstock center sleeve

φ90

Max.stroke of Tallstock center sleeve

120

Taper of Tallstock center sleeve

MT5
