30°Linear-rail Turning, milling, grinding and fighting machine optical machine FC-51

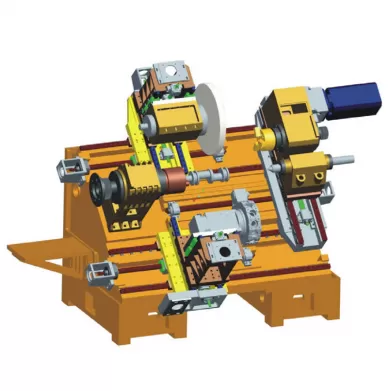

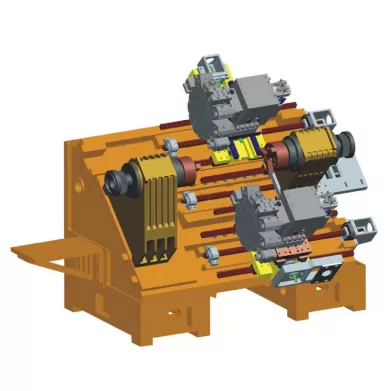

Product Drawings

ltemSizeFC-51
Working rangeMax.Turning diameter over bedφ510
Max.Turning swing dia over cariageφ180
Max.Turing diameterφ400
Max.milling legth
  /
Max.Processing lengthGank :480Gank 450Gank:420
Turret380Turret.350Turret.320
Max.X/Z axis travelXaxis1100
Zax is550
Feed screwX axis ball-screw3210-C3
(N·m)Recommend the X axis motor torque>10
Z axis ball-screw3210-C3
(N·m)Recommend the Zaxis motor torque>10

Bed slant angle30° integral casting bed
Linear guide's span450
Spindle(rpm) Max.spindle speed450045003000
Spindle through-hole diameterφ56φ62φ79
  Spindle nose sizeA2-5 A2-6 A2-6
  Taper of holeMT6 MT6 MT6
(KW)Recommend the spindle motor power5.57.57.5
Hydraulic chuck or collet chuck6inch or 46Simple clip8inch or 52Simple clip10inch
