45°Turning Centre(Double Spindle Single Turret) GP-630S

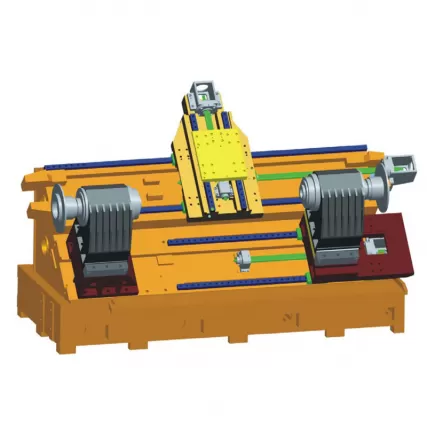

Product Drawings

ItemSizeGP-630S
Working range Max.Turning diameter over bedφ780
 Max.Turing diameterφ300(When the X-axis is protected with a special hydraulic turret.)
 Max.Turning swing dia.over carriageφ450φ450
 Max.Length between both chucks850666
 Max.Processing length850650
Max.X/Z axis tra X2 axis290
 Y2 axis
 Z2 axis1000
 Max.Tailstock travel1000


Feed screw
 Control axis5 Axis(X+Z+Z3+C1+C2)
 X2 axis ball-screw4010-C3
 (N·m)Recommend the X2 axis motor torque>15
 Y2 axis ball-screw
 (N·m)Recommend the Y2 axis motortorque/
 Z2 axis ball-screw4010-C3
 (N·m)Recommend the Z2 axis motor torque>15
 Tallstock ball-screw4010-C3
 (N·m)Recon   nend tailstock motor torque≥15
Bed Bed slant angle45° Integral cast bed
 Linear guide's span427
Spindle Max.spindle speedmain spindle:4500              back spindle:4500main spindle:3000              back spindle:3000
 Spindle through-hole diametermain spindle:φ62                back spindle:φ62main spindle:φ88              back spindle:φ88
 Spindle nose sizemain spindle:A2-6               back spindle:A2-6main spindle:A2-8             back spindle:A2-8
 Bore tapermain spindle:1:20                back spindle:1:20main spindle:1:20              back spindle:1:20
 (kW)Recommend the spindle motor powermain spindle:7.5                 back spindle:7.5main spindle:11             back spindle:11
 Hydraulic chuck or collet chuckmain spindle:8 inch            back spindle:8 inchmain spindle:10 INCH   back spindle:10 INCH
